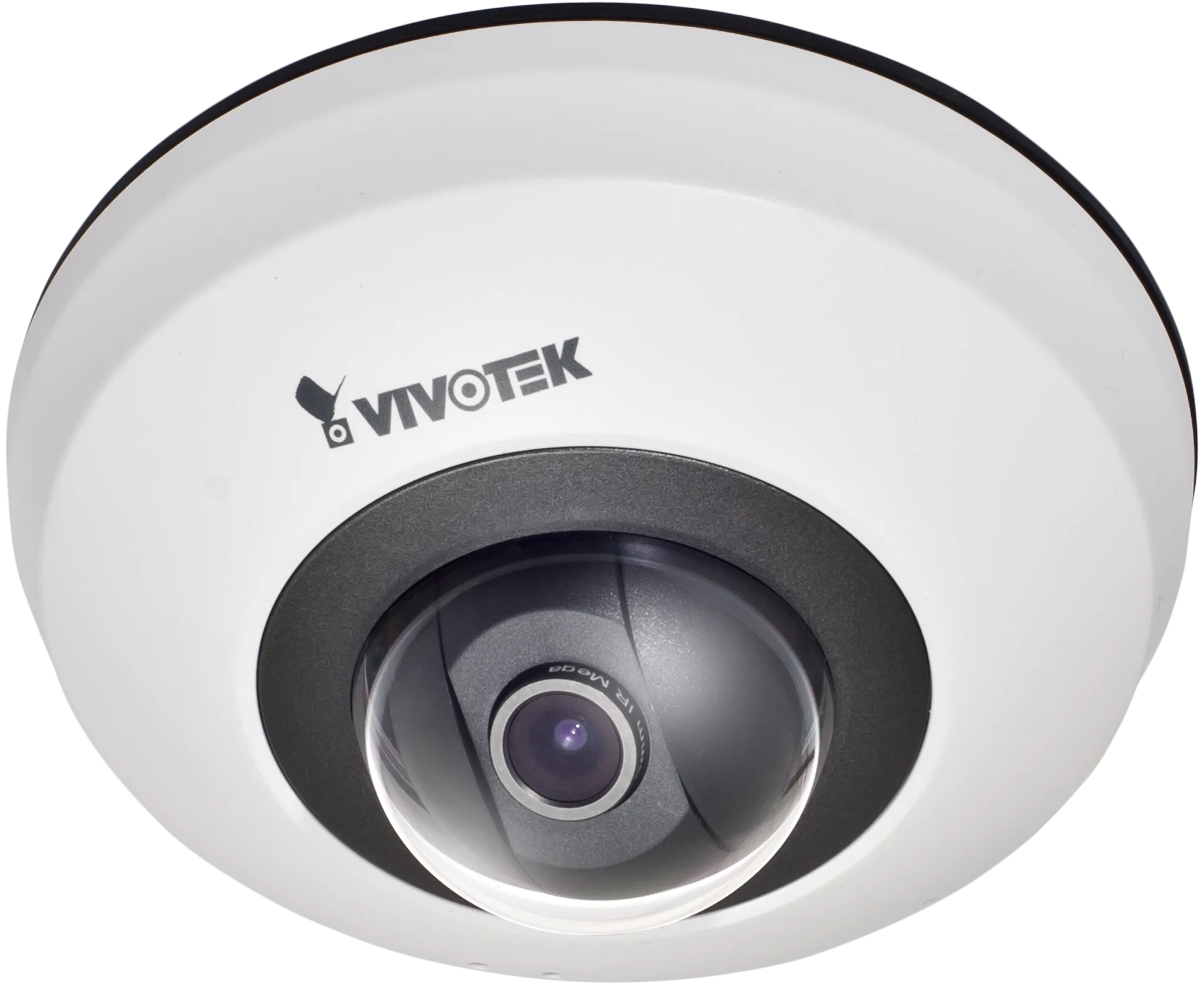

Name: Vivotek PD8136 DOME IP 1MP PAN/TILT 3.6M POE
SKU: 245587

Product Details ＋

PN / VIV-PD8136 *

Overview

VIVOTEK PD8136 is equipped with a 1-megapixel sensor enabling viewing resolution of 1280x800 at 30 fps. Users need look no further for an all-in-one camera capable of capturing high quality, high resolution video with pan & tilt control. With a stylish design and small footprint to fit most installation environments, it is the best choice for indoor surveillance applications such as retail stores, offices, or homes.

With flexible 360-degree pan and 80-degree tilt, PD8136 gives users comprehensive control over a monitored site. The PD8136 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. In addition, PD8136 is integrated with Power over Ethernet functionality, making installation easier and more cost-efficient. Together with the bundled, multi-lingual 32-channel recording software ST7501, users can set up an easy-to-use IP surveillance system with ease.

Features

1-megapixel CMOS Sensor
360° Pan & 80° Tilt for Wide Area Monitoring
compact, Elegant Design
Real-time H.264, MPEG-4 and MJPEG compression (Triple Codec)
30 fps @ 1280x800
Built-in MicroSD/SDHC Card Slot for On-board Storage
Built-in IEEE 802.3af Compliant PoE

Specifications

System Information

CPU	Multimedia SoC (System-on-Chip)
Flash	16 MB
RAM	128 MB

Camera Features

Image sensor	1/4" Progressive CMOS
Maximum Resolution	1280x800
Lens Type	Fixed-focal
Focal Length	f = 3.6 mm
Aperture	F1.8
Field of View	56° (horizontal) 41° (vertical) 71° (diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
Minimum Illumination	0.47 Lux, 50 IRE ( Color )
Pan speed	101° / sec.
Pan range	360° (-180° ~ 180°)
Tilt speed	101° / sec.
Tilt range	80° (10° ~ 91°)
Pan / Tilt / Zoom	ePTZ: 4x digital zoom (4x on IE plug-in)
On-board Storage	MicroSD/SDHC card slot

Video

Compression	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264: 30 fps at 1280x800 MPEG-4: 30 fps at 1280x800 MPEG-4: 30 fps at 1280x800
Maximum Streams	2 simultaneous streams
S/N Ratio	Above 50 dB
Video Streaming	Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings

Audio

Audio Capability	Audio input
Compression	G.711
Interface	Built-in microphone
Effective Range	5 meters

Network

Users	Live viewing for up to 10 clients
Interface	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF	Supported, specification available at www.onvif.org
Interface	10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.

Intelligent Video

Video Motion Detection

Triple-window video motion detection

Alarm and Event

Alarm Triggers	Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server PD8136

General

Connectors	RJ-45 cable connector for Network/PoE connection
LED Indicator	System power and status indicator
Power input	IEEE 802.3af PoE Class 2
Power consumption	Max. 6.24 W
Dimensions	Ø: 120 mm x 55 mm
Weight	Net: 180 g
Safety Certifications	CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature	0°C ~ 45°C (32°F ~ 113°F)
Warranty	24 months
