FEATURES:

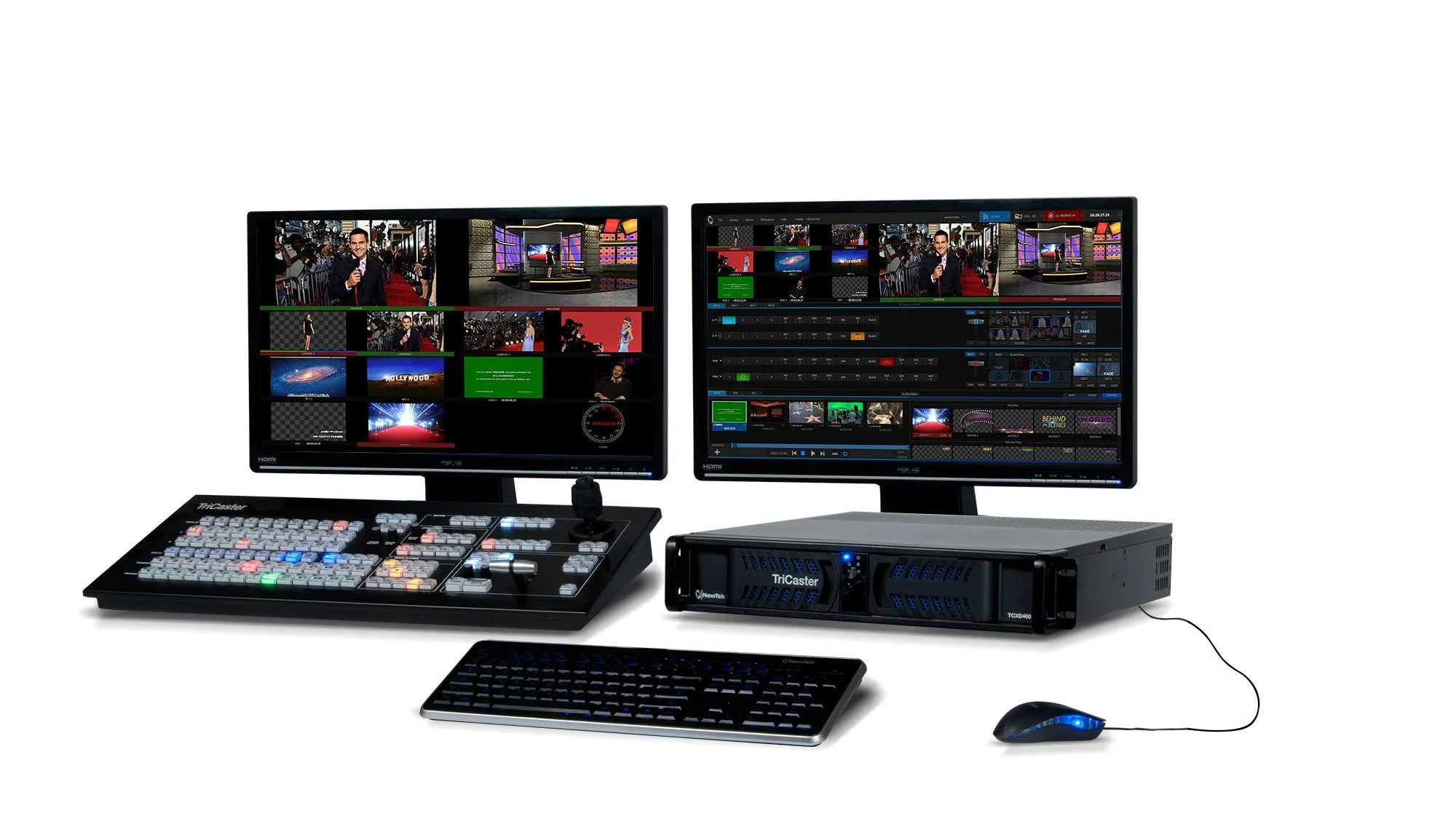

• Compact frame and intuitive layout ideal for use with TriCaster 460, TriCaster 410 and TriCaster Mini
• Illuminated buttons for heightened visibility of control surface activity
• Premium T-Bar and three-axis joystick for precision control of effects
• Synchronized control of multiple production elements with versatile, multi-select delegate controls
• Durable, ergonomic design for confident, comfortable performance

SPECIFICATIONS:

Dimensions

• Surface ~ 23.5 x 0.5 x 11.6 in (59.7 x 1.3 x 29.5 cm)
• Base ~ 22.5 x 2.0 x 10.8 in (57.2 x 5.1 x 27.4 cm)

Switcher Channels

• 16 – 6 external, 6 internal, 4 M/E buses

Video Input

• 4 simultaneous live video sources via SDI, in any combination of supported resolutions and frame rates
• Per-input format configuration, scaler (including 3:2 intelligent pull-down) and frame synchronizer enabling intermixing of formats
• Per-input color correction, crop and LiveMatte™ keyer controls
• Support for Key Fill input pairing

Network Sources

• 2 live inputs via Gigabit connection, selectable from any available network sources with support for video, audio and alpha channel
• Supported sources include
NDI™-compatible and AirSend™-compatible systems
• devices and applications
• networked computers via iVGA™
• USB video sources
• video over IP sources
• RTMP and RTSP streams
• HTTP streaming video sources
• video and CG sources from compatible third-party partner solutions

INCLUDED:

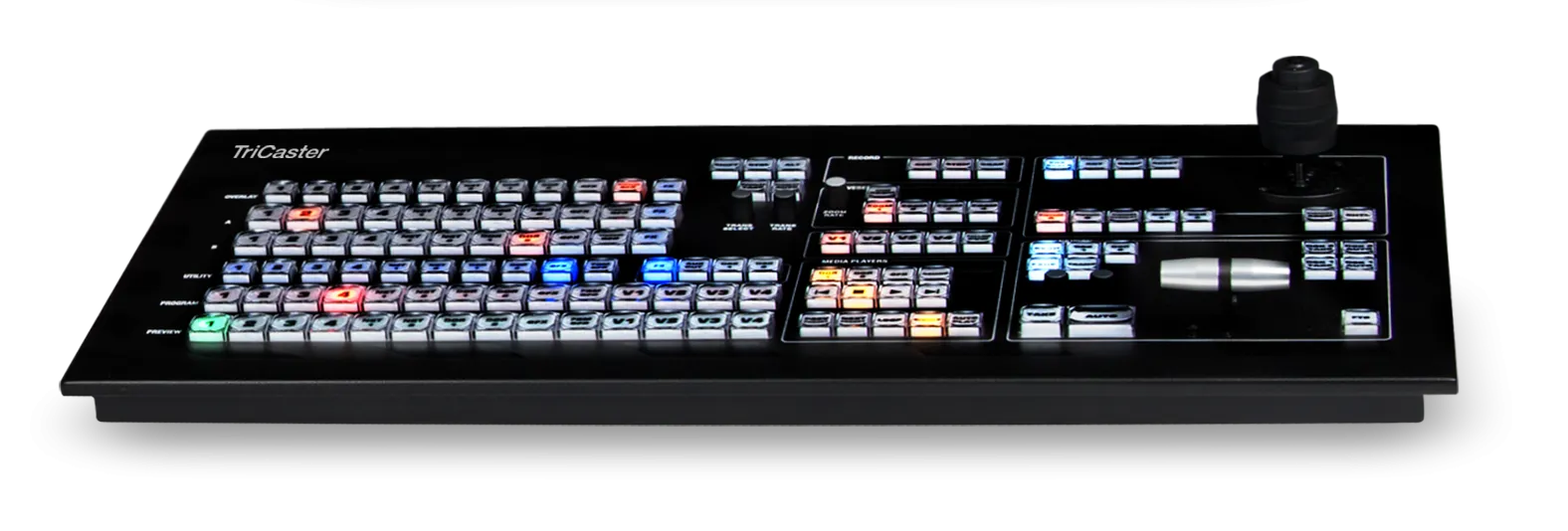

• (1) TriCaster 460 Control Surface
