Universal ground penetrating radar system for terrestrial and airborne surveys with real-time sampling (RTS) technology and advanced built-in digital signal processing to provide high quality data with an exceptional signal-to-noise ratio.
The Zond Aero 500 NG is a truly versatile system that can be used in the most appropriate way for specific survey conditions:

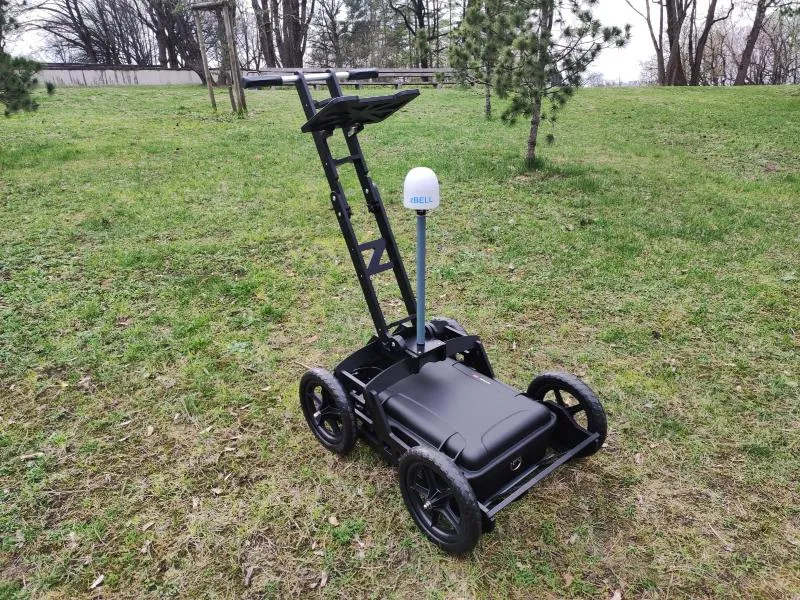

- on a - the most standard method for scanning on the streets or in confined spaces
- dragged with a tow rope if the load-bearing capacity of the ground surface is not suitable for a wheeled cart

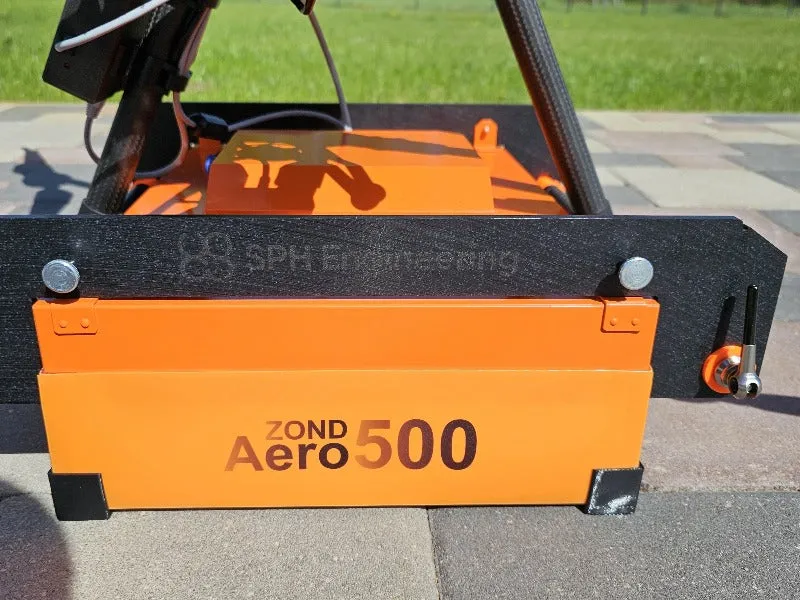

- on a drone for large open areas without tall obstacles and vegetation

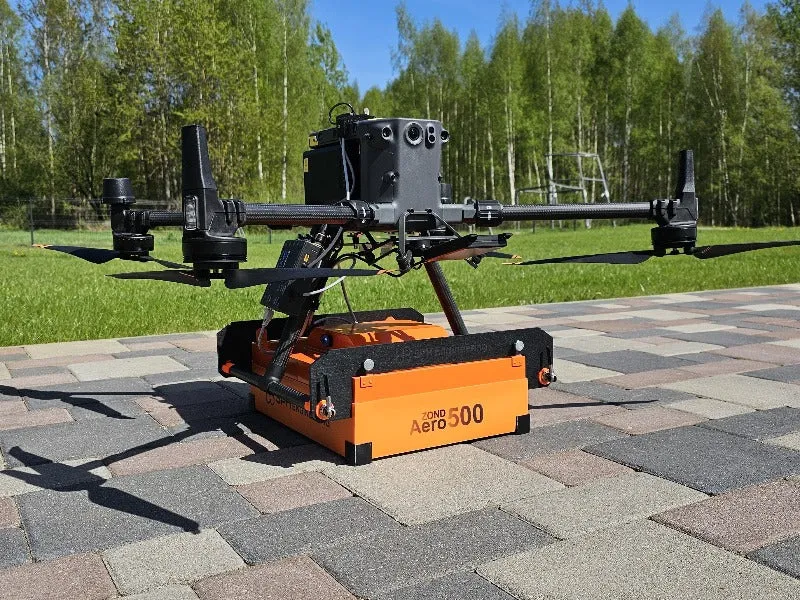

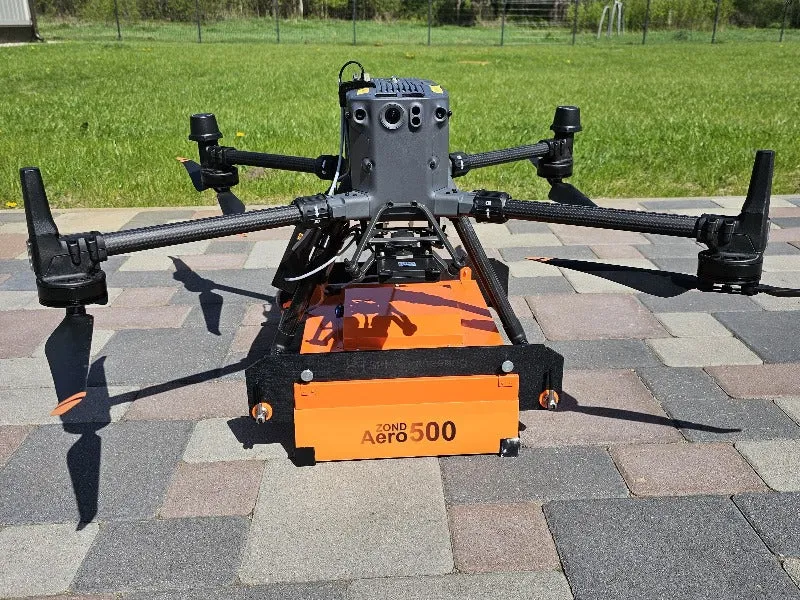

Lightweight GPR system on the market, suitable for medium-sized drones like DJI M350/M300 RTK.
HS Code: 90158020 (meteorological, hydrological, geophysical instrument)
FCC Code: 2AUQQ-AERO500NG
IC Code: 25515-AERO500NG
Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a complete set. Please ask for the quote.

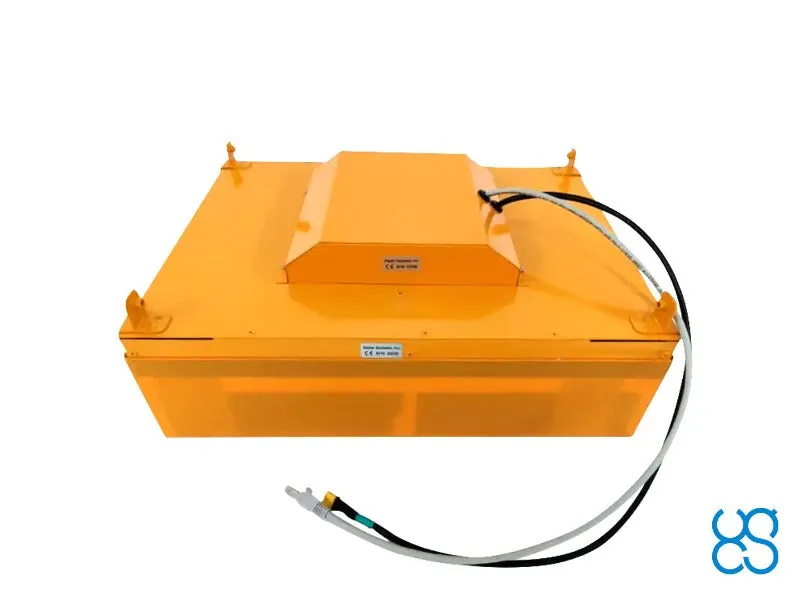

| Type | Single-channel with shielded antenna |
| Center frequency | 500 MHz |
| Operating bandwidth | 200-900 MHz (-12 dB) |
| Samples per trace | selectable 256 / 512 / 1024 / 2048 / 4096 / 8192 |
| Sample rate | up to 1,280,000 samples/second (depends on hardware stacking) |
| Scan rate | up to 2,500 scans/s (depends on hardware stacking) |
| Sample output | 32-bit digital raw data |
| Time range per sample | selectable 71ps / 125ps / 179ps / 250ps / 500ps / 625ps / 714ps / 1ns |
| Depth | Up to 4 meters in average normal soil with 100ns time range |
| Data format | Standard Geophysical SEGY Data Format (.sgy) |
| DOCUMENTATION & DATA SETS | |
| Data Sheet | |
| User Manual | |
| Data Samples | |
| ENVIRONMENTAL | |
| Temperature | -20°C to 60°C internal temperature |
| Humidity | 96% non-condensing |
| Ingress protection | IP68 in a protective box (used for transportation and for ground surveys) IP52 in airborne variant |
| MECHANICAL | |
| Size (L x W x H) |
|
| Weight |
|
| BATTERY | |
| Airborne variant | Drone main battery is used to provide power to the GPR using standard power socket of the drone intended for payload |

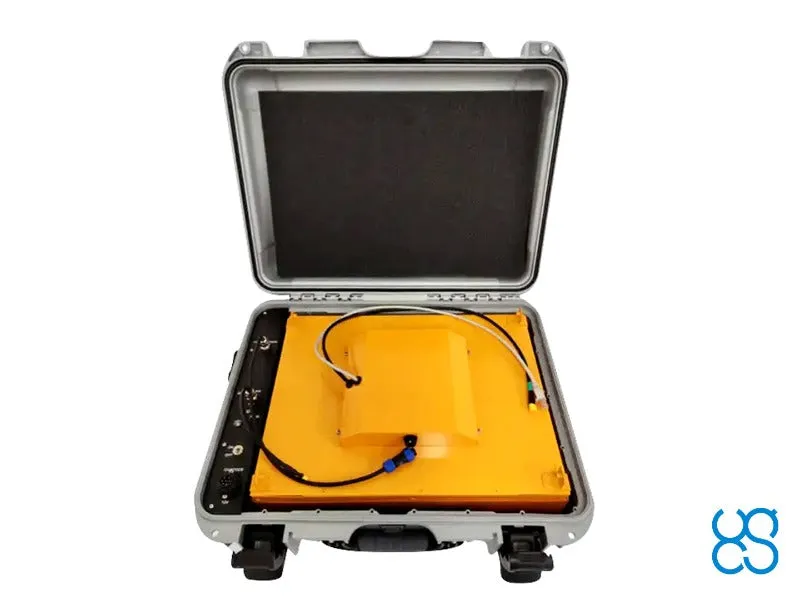

| Ground surveys | The battery is integrated into a protective box, operating time up to 12 hours 99 W/h Li-Ion |
| WHAT’S IN THE KIT | |
| |
