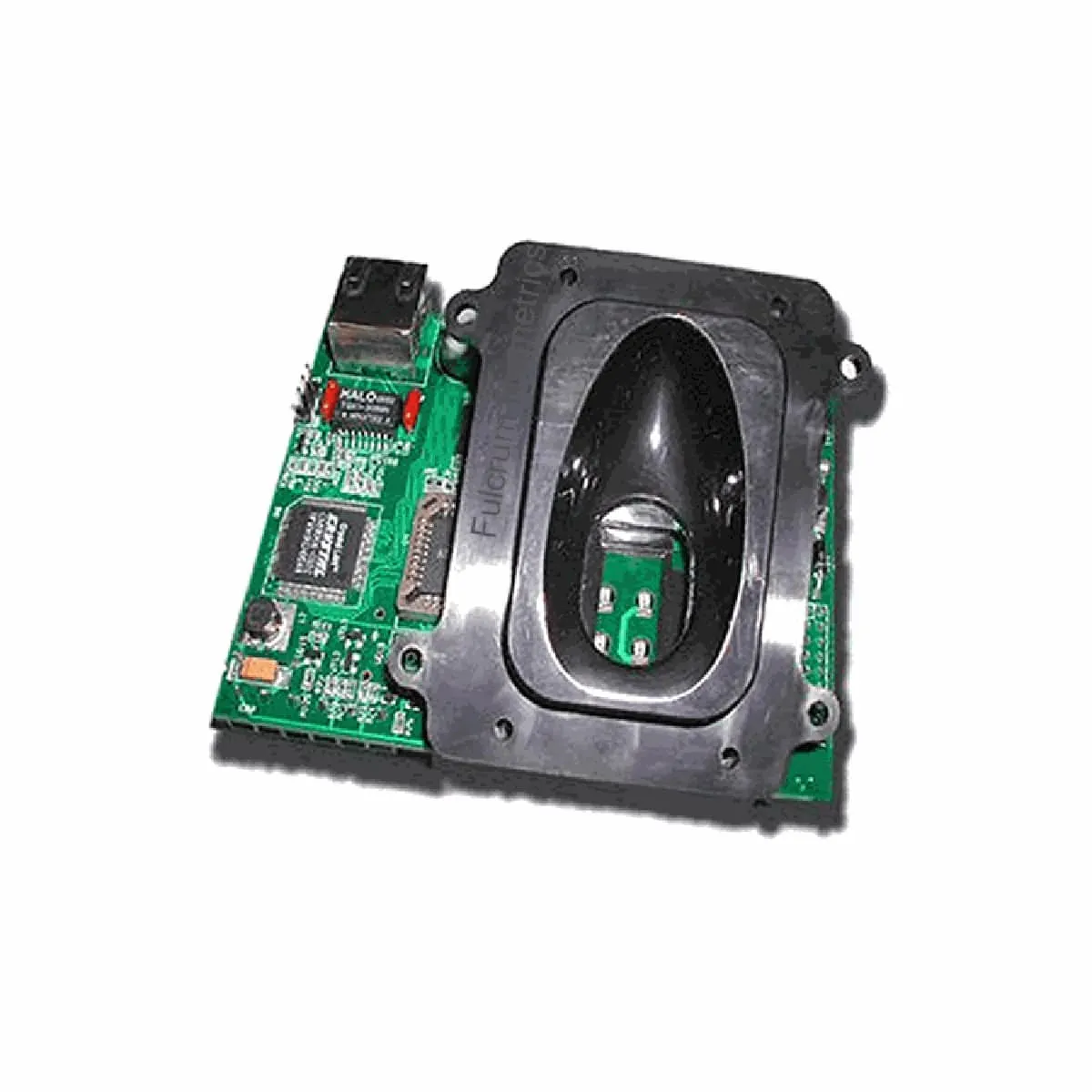

Futronic FS84 ethernet Fingerprint Authentication Module (eFAM) combines both high performance fingerprint scanner and recognition engine into one device. It has internal memory that can store up to 2500 fingerprint templates.
Any host system can control the FS84 via standard Ethernet interface to enroll finger and recognize finger. The recognition result will be sent from FS84 to the host.
4 wires serial interface is also available. So FS84 can be used for both embedded and remote fingerprint recognition application. Fingerprint images and templates can be transferred between FS84 and host system via serial and ethernet interface.
FS84 has 1 output channel (for external relay control) and 2 input channels (for door sensor and switch). So it can be used as a fingerprint access control device.
Futronic provides development tools to customer free of charge for integrating the FS84 with any host system.
Futronic FS84 Ethernet Fingerprint Module Features
- Remote scanner module
- Ethernet and serial connection
- Output channel for external relay control
- Input channels for reading data from sensors
Tech Specs
| Scanner Name | FS84 ethernet Fingerprint Authentication Module (eFAM) |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | Ethernet |
|
Neurotechnology Supported OS(1) |
Windows (32 & 64 bit), Linux (32 bit) |
| Manufacturer Supported OS | Practically any host can control the FS83 (sFAM) |
| Resolution | 500 dpi |
| Fingerprint Capture Method | Touch |
| Image capture area (Platen size) | 16 x 24 mm (0.6"" x 0.9"") |
| Fingerprint image size | 320 x 480 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Device size | 106 x 76 x 41 mm (4.2"" x 3.0"" x 1.6"") |
| Device weight | 200 grams (7.1 oz) (without power supply) |
| Operating temperature | -10°C ~ 55°C |
(1) These operating systems are supported by Neurotechnology SDKs.
Electrical characteristics
- Light source: Infrared LED
- 4 wires serial interface, VCC, GND, TX and RX. Speed up to 961200bps.
- Ethernet communication speed: 10M
- Supply voltage: 12V. Max current consumption: 250mA
- 1 output and 2 input channels for controlling external devices
- 2 output channels for controlling external LEDs
- ESD: contact 8KV and air discharge 16KV no permanent damage
The Futronic FS88 USB 2.0 Reader is compatible with many different software development kits and applications. Below is the list of products that are currently known to support this scanner. Please note that some applications and development kits require specific versions of the drivers to be installed. Please contact us if you need additional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Futronic Software Development Kit for Windows
Futronic Software Development Kit for Linux
