The Draper Access V [HDTV 16:9] Tab-Tensioned ceiling-recessed Electric Screen is a high-quality projection screen designed for immersive home theater and professional audiovisual setups. With a generous screen size of 193 inches (measuring 94 1/2 inches in height and 168 inches in width), this screen offers a truly cinematic experience.

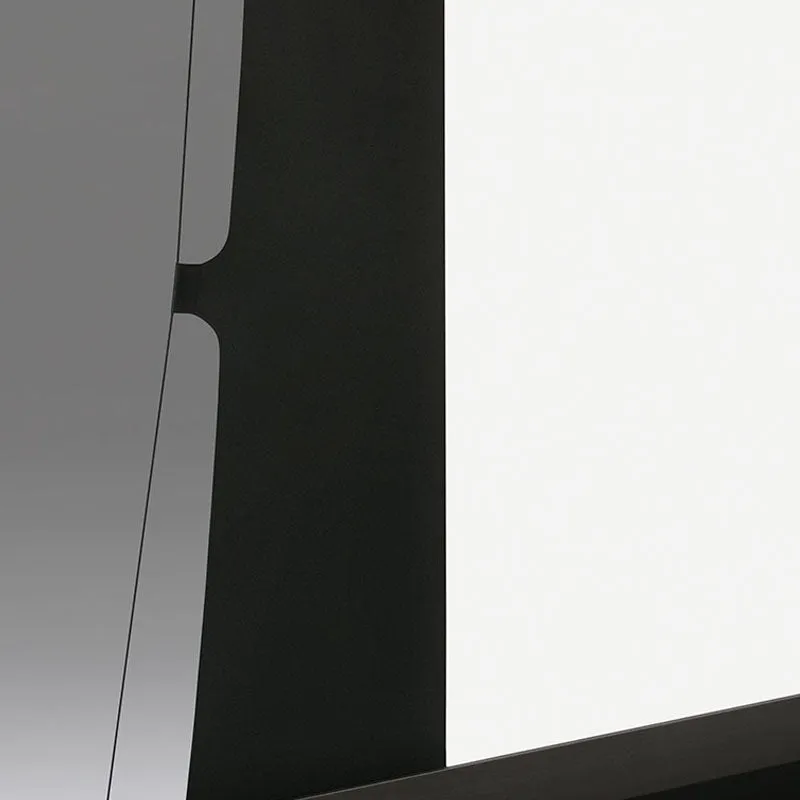

The screen features a tab-tensioning system, ensuring that the surface remains perfectly flat, free from any wrinkles or waves. This mechanism also enhances image clarity and eliminates any distortion, providing you with a smooth and uniform projection surface.

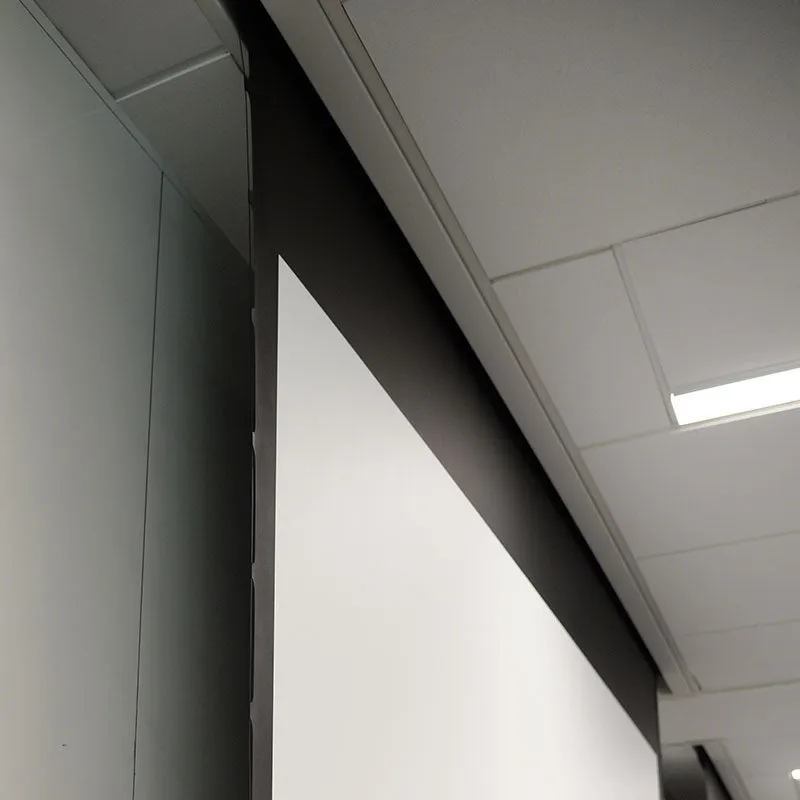

Designed for ceiling installation, the Access V screen is recessed into the ceiling when not in use, offering a clean and unobtrusive appearance. The motorized electric operation allows for easy control, with a simple push of a button or integration with compatible control systems.

The 16:9 aspect ratio is ideal for displaying widescreen content, making it suitable for movies, sports events, gaming, and other multimedia applications. The screen is optimized for HDTV resolution, ensuring that your high-definition content is displayed with exceptional detail and vibrant colors.

Draper is renowned for its commitment to quality, and the Access V screen is no exception. The screen surface is durable, with excellent viewing angles and superior image reproduction. It is also compatible with both standard and short-throw projectors, providing versatility for various projection setups.

Whether you're a home theater enthusiast or a professional AV user, the Draper Access V Tab-Tensioned Electric Screen offers a seamless and immersive projection solution, bringing your visuals to life on a large and impressive scale.

Product Specs

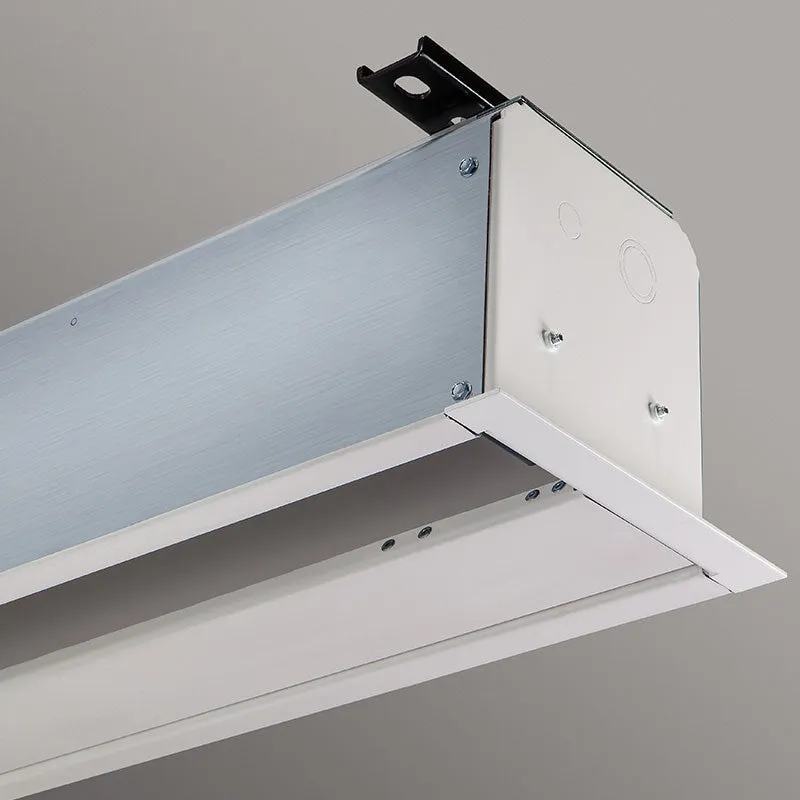

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
