Product Details
＋

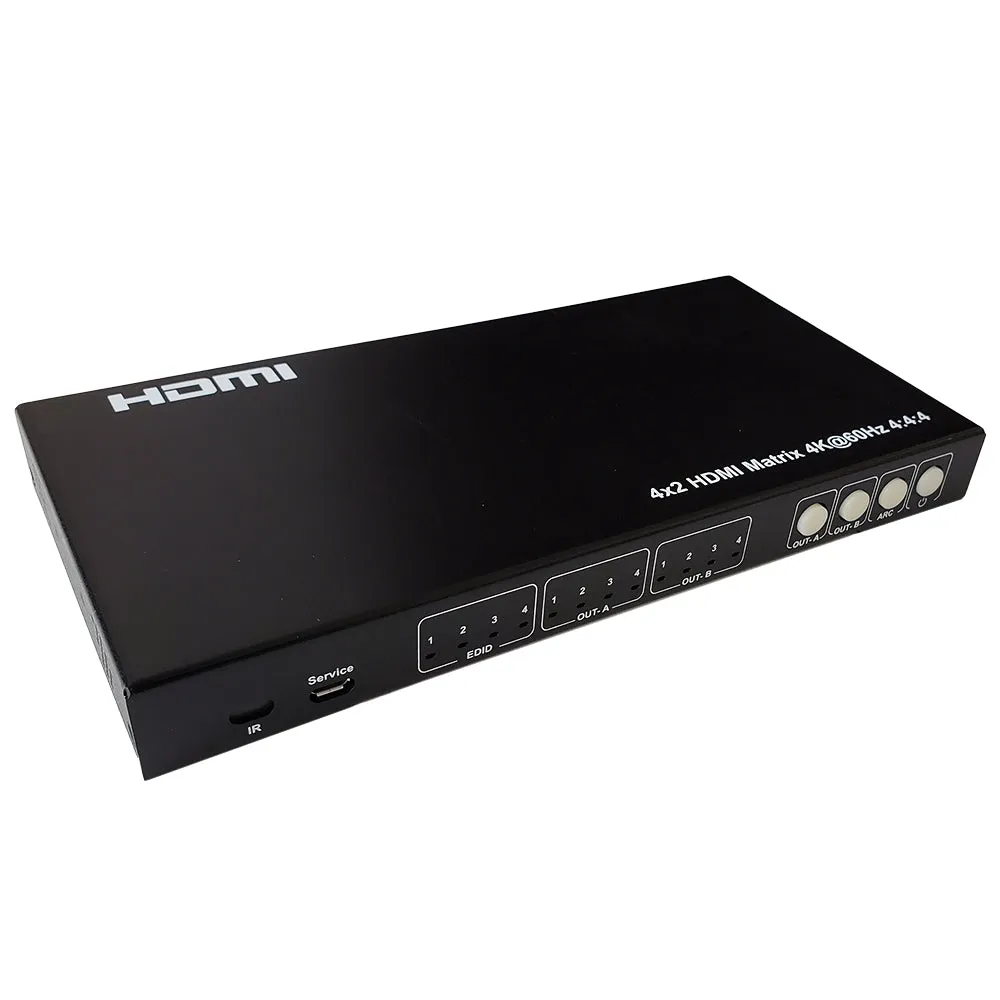

This 4x2 HDMI matrix switch enables you to connect up to four HDMI sources to up to two HDMI displays. Any one of the four inputs can be displayed on any one of the two outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Features
- Supports matrix function from 4 HDMI input ports to 2 HDMI output ports
- Supports 4Kx2K@50/60Hz resolutions and supports HDR
- Supports deep color 24bit, 30bit, 36bit
- Supports ARC, TV audio will return and output by the Optical port and L&R ports
- Supports Pass/2.0/5.1 three kinds of audio EDID mode options
- Supports 3D, deep color max 12bit
- SPDIF interface supporting LPCM2.0, Dolby Digital (AC3), DTS digital audio and supports 5.1-channel
Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 250 x 75 x 30mm |
| Operating Temperature | -5° ~ 40°C |
| Operating Humidity Range | 5 to 85% RH (No condensation) |
| Storage Temperature | -15° ~ 55°C |
| Storage Humidity | 5 ~ 95% RH (No condensation) |
Power | |

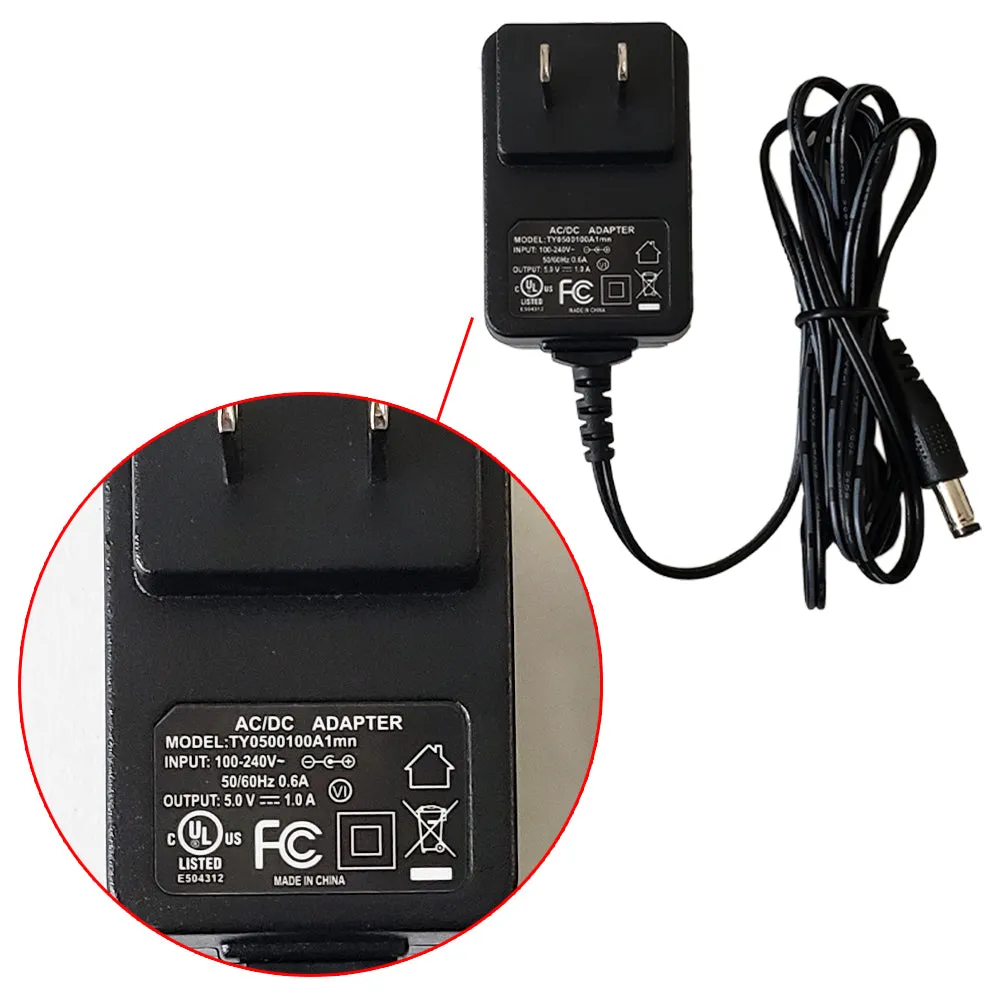

| Power Adapter | Input: AC 100~140V Output: DC 5V/1A |
| Max Working Current | 500mA |

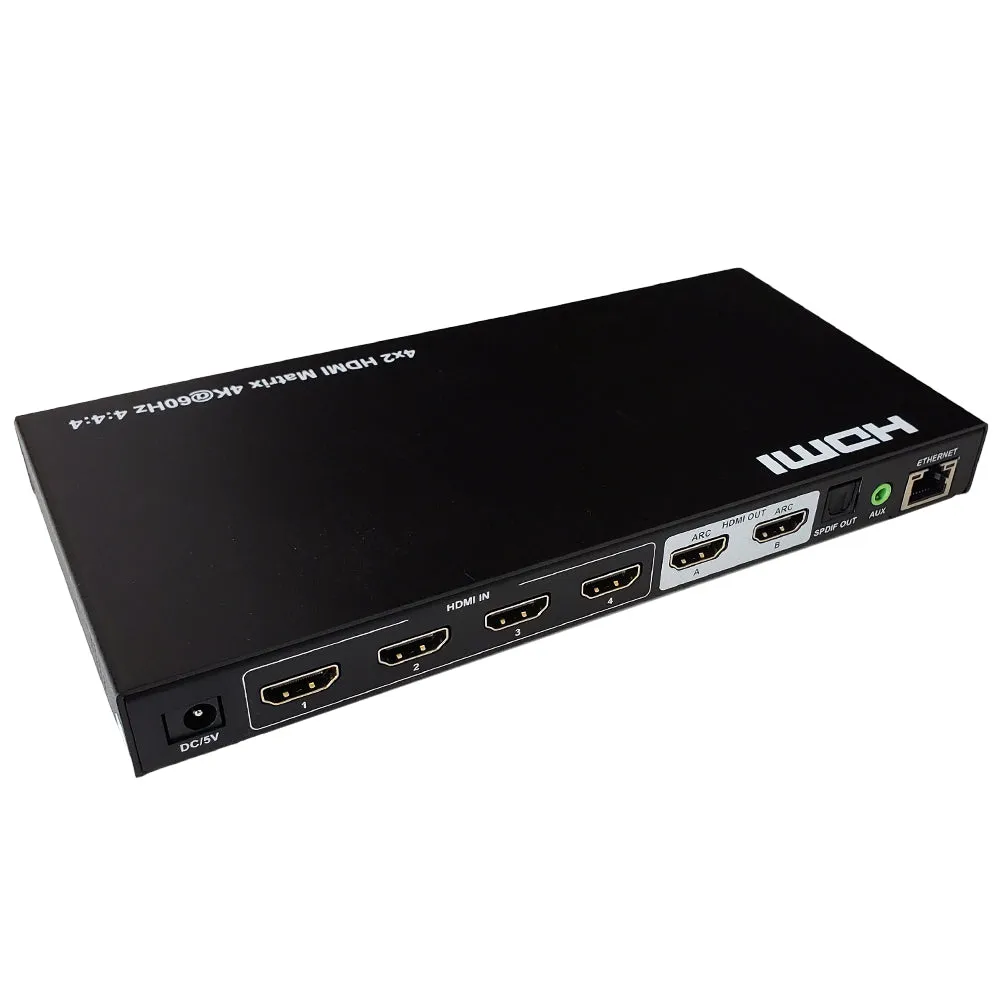

Connector(s) | |
| Input | 4 x HDMI Female |
| Output | 2 x HDMI Female, 2 x RCA, 1 x Optical |
Performance | |
| Video | 480p / 720p / 1080p / 2160p (4K@60Hz) |
| Deep Color | 8/10/12Bit @ 480p / 720p / 1080p 8Bit @ 2160p |
| Audio | Dolby HD / DTS HD / Dolby Atoms / Dolby AC3 / DTS / LPCM |
| HDMI Version | HDMI 2.0 |
| Transmission | Bandwidth 25~600MHz |
| Transmission Rate | 0.75 ~ 18Gbps |
| IR Distance | => 5m |
| Supports | ARC, HDR |
Approvals | |
| Power Adapter | c(UL)us |
Environmental | |
| RoHS | Yes |
Certification(s) | |
| CE | Yes |
| FCC | Yes |
Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.97 lbs [0.44 kg] |

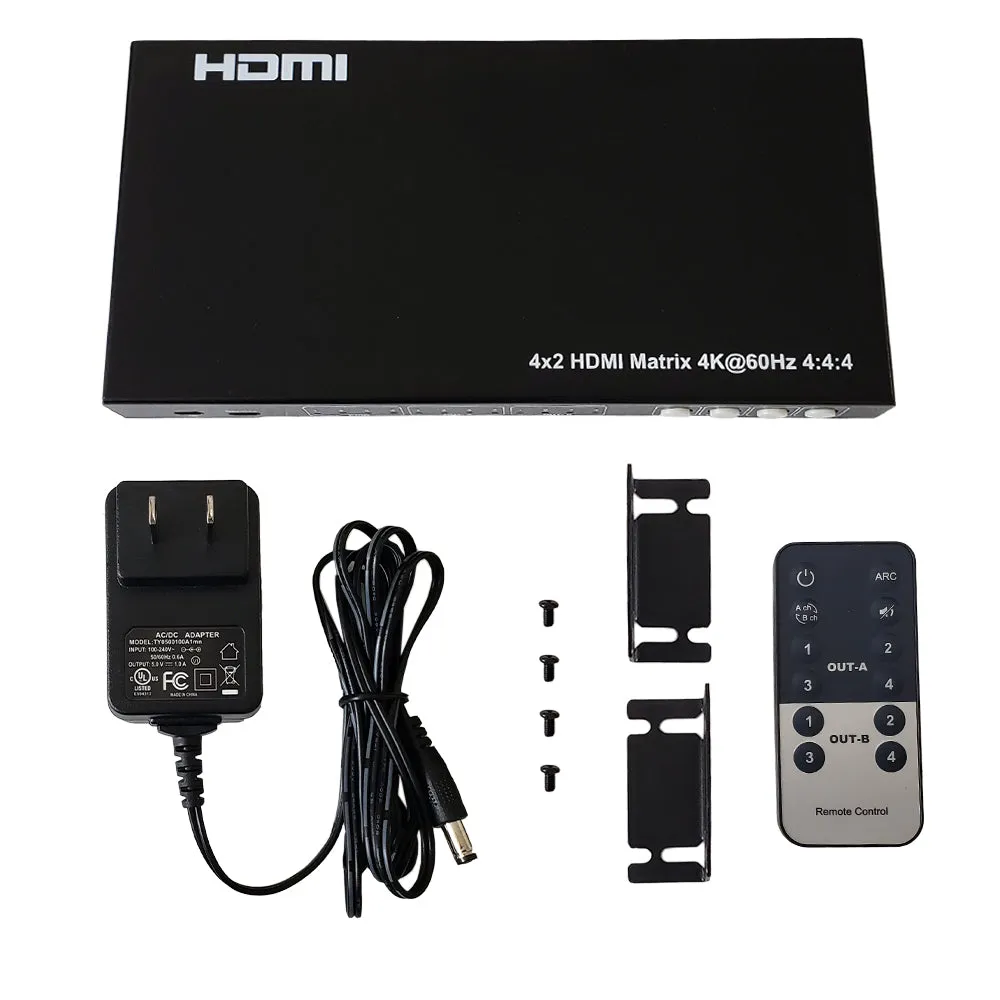

Contents | |
| Included in Package | 1 - HDMI Matrix |
| 1 - Power Adapter | |
| 1 - Remote Control | |
| 1 - User Manual | |
